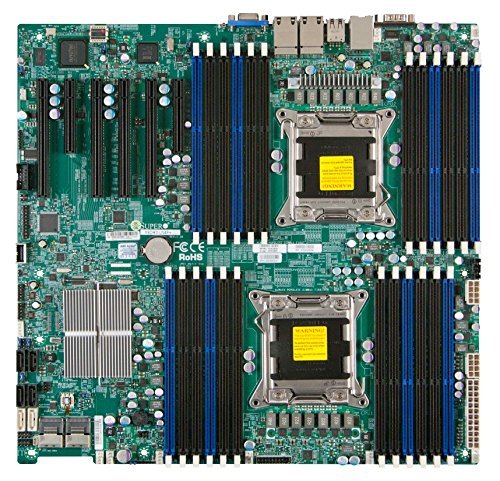

Supermicro X9DRI-F Server Motherboard
In stock
AED 1,800.00
- DG2025
- Motherboard form factor: E-ATX, 12" x 13" (30.5cm x 33.2cm)
- CPU socket: Dual Socket R (LGA 2011)
- RAM:
- Number of DIMM slots: 16
- Memory type: 1600/1333/1066/800MHz ECC DDR3 SDRAM, 72-bit, 240-pin DIMMs
- Possible sizes of Memory Modules: 1GB, 2GB, 4GB, 8GB, 16GB, (32GB modules are currently not available)
- Maximum Memory Capacity: 512 GB (ECC Registered memory (RDIMM)) or 128 GB (ECC Un-Buffered memory (UDIMM)), currently available at Thomas Krenn: 256 GB ECC RDIMM
- SATA chip: PCH C602
- The motherboard has 8x SATA2 and 2x SATA3 ports:
- The onboard SATA controller supports only the Intel RAID mode (no other RAID modes)
- The SATA port division is as follows:
- 2x SATA3 ports (individual ports)
- 4x SATA2 ports (individual ports)
- 4x SATA2 ports (multilane - SCU)
- Important notes regarding the SATA ports:
- SATA2 and SATA3 ports should not be put together in a single RAID.
- Each controller has its own management BIOS.
- Only one of the two 4x SATA2 controllers can be used in the RAID mode. The installation of operating systems can run into problems when RAID mode is activated for both controllers.
- LAN-Chip: Intel I350
- Expansion slots:
- Note: The PCIe root complex is located within the CPU. PCIe slots 1, 2, and 3 are are controlled by CPU1. PCIe slots 4, 5, and 6 by CPU2. To enable the use of all PCIe slots, two CPUs must be installed.
- 3x PCI-E 3.0 (x16) Slots (Slot 2/4/6)
- 3x PCI-E 3.0 (x8) Slots (Slot 1/3/5)
- Internal I/O ports:
- 6x SATA Ports (2x SATA 3.0, 4x SATA 2.0 Ports)
- 4x SCU Ports
- External I/O ports:
- IPMI 2.0
- 2x Fast UART 16550 Connection: 9-pin RS-232 Port
- 4x USB Ports Rear (USB 0/1, USB 2/3), 6x USB Headers (USB 4/5, USB 8/9, USB 10/11), 1x Type A (USB 7)
- Graphics chip: Matrox G200eW
- Graphic interfaces:
- 1x VGA port
- Graphic interfaces:
- IPMI chip: Nuvoton WPCM450R IPMI Chip with ATEN-Software
