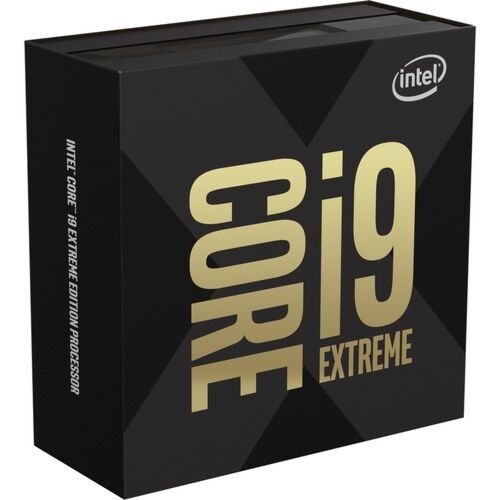

Intel Core I9-10980XE Extreme Edition 18 Cores Turbo 4.6 GHz 24.75M Cache Processor

Compatible with their X299 chipset-based motherboards, the Core i9-10980XE 3.0 GHz 18-Core LGA 2066 Processor from Intel has a base clock speed of 3.0 GHz and comes with features such as Intel Deep Learning Boost, Intel Optane Memory support, Intel Hyper-Threading technology, Intel Virtualization Technology (VT-x), Intel Virtualization Technology for Directed I/O (VT-d), and more. With Intel Turbo Boost 2.0 technology, the maximum turbo frequency this processor can achieve is 4.6 GHz, and with Intel Turbo Boost 3.0 technology, it can further be boosted to 4.8 GHz. Additionally, this processor features 18 cores with 36 threads in an LGA 2066 socket, has 24.75MB of cache memory, and 48 PCIe lanes. Having 18 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 36 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core. This processor also supports up to 256GB of 2933 MHz DDR4 memory.

Intel did not design this processor with an integrated graphics chipset, meaning that users will need to purchase a compatible and dedicated graphics card of their choice. If you need even more performance, this processor is unlocked, which lets you overclock the processor over its maximum speed.

General
CPU Model Intel Core i9-10980XE
CPU Socket LGA 2066
Manufacturing Process 14 nm
Maximum CPU Configuration 1S
Maximum Number of PCIe Lanes 48 (Revision 3.0)
Unlocked Yes
Performance
Number of Cores 18
Number of Threads 36
Base Clock Speed 3.0 GHz
Maximum Boost Speed 4.8 GHz
L3 Cache 24.75 MB
Memory Support
Maximum Capacity 256 GB
Memory Support DDR4 2933 MHz
ECC Memory No
Channel Architecture Quad Channel
Maximum Memory Bandwidth 94 GB/s
Power
Thermal Design Power (TDP) 165 W
Included Thermal Solution None
Maximum Temperature 186.8°F / 86°C
Thermal Monitoring Technologies No
Technology
AES Support Yes
Extension AVX 2.0, AVX-512, SSE 4.1/4.2
Instruction Set 64-Bit
Virtualization Yes: Intel VT-d, Intel VT-x
Integrated Graphics
Graphics Chipset None
Intel
DMI DMI3 (8 GT/s)
Optane Memory Support Yes
vPro Support No
Performance Technologies Hyper-Threading, SpeedStep, Turbo Boost 2.0, Turbo Boost Max 3.0
Security Technologies Execute Disable Bit
Brand
INTEL
Weight
1.000000
