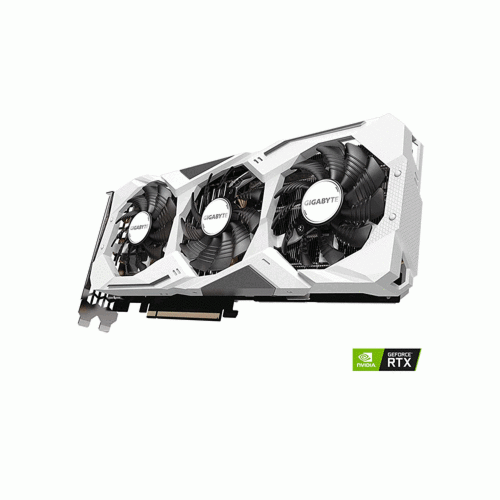

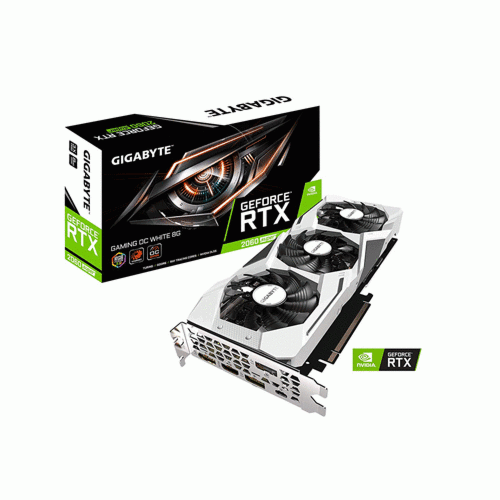

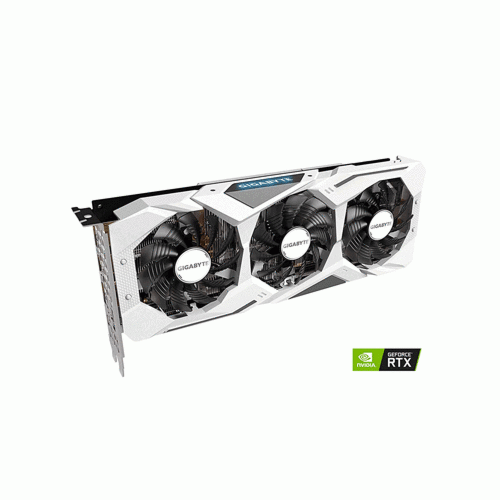

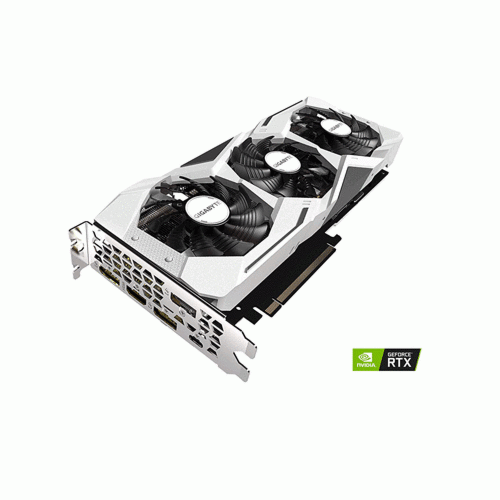

Gigabyte GeForce RTX 2060 Super Gaming OC 8G Graphics Card, 3X Windforce Fans - White

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 4 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

ALTERNATE SPINNING
The GIGABYTE patent “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.

GAME IN STYLE
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.CYCLING
Smoothly cycles through all colorsCONSISTENT
Choose a color for static lightFLASH
Choose a color for flash effectDUAL FLASH
Choose a color for double flash effectBREATHING
Choose a color to fade in and out

BUILT STRONG
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 6+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.(Reference card is 5+2

POWER INDICATORS
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.

Light on :
power cable disconnected

Light off :
stable power supply

Blinking :
abnormal power supply

Specifications
Graphics Processing
GeForce RTX 2060 SUPER
Core Clock
1815 MHz (Reference Card: 1650 MHz)
RTX-OPS
45
CUDA® Cores
2176
Memory Clock
14000 MHz
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
448 GB/s
Card Bus
PCI-E 3.0 x 16
Digital max resolution
7680x4320@60Hz
Multi-view
4
Card size
L=280.35 W=116.45 H=40.24 mm
PCB Form
ATX
DirectX
12
OpenGL
4.6
Recommended PSU
550W
Power Connectors
8 Pin*1
Output
DisplayPort 1.4 *3
HDMI 2.0b *1
SLI Support
No
Accessories
1. Quick guide
2. Driver CD
