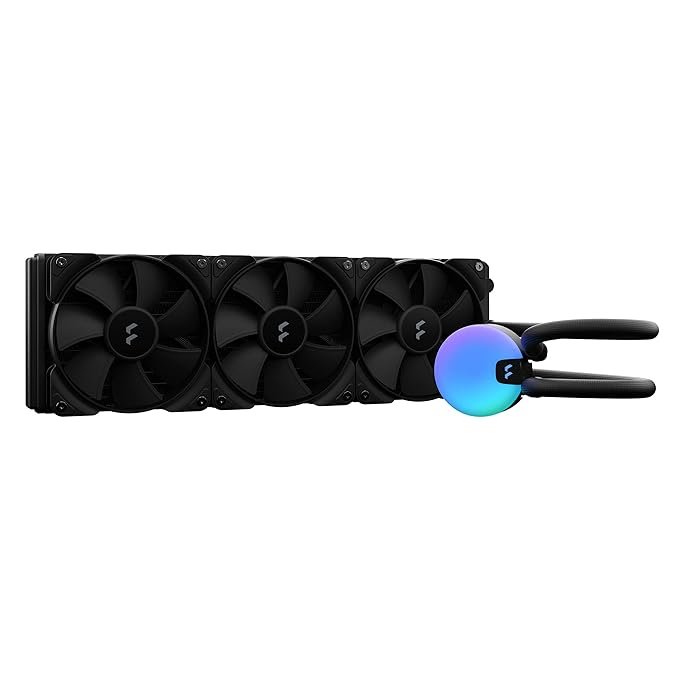

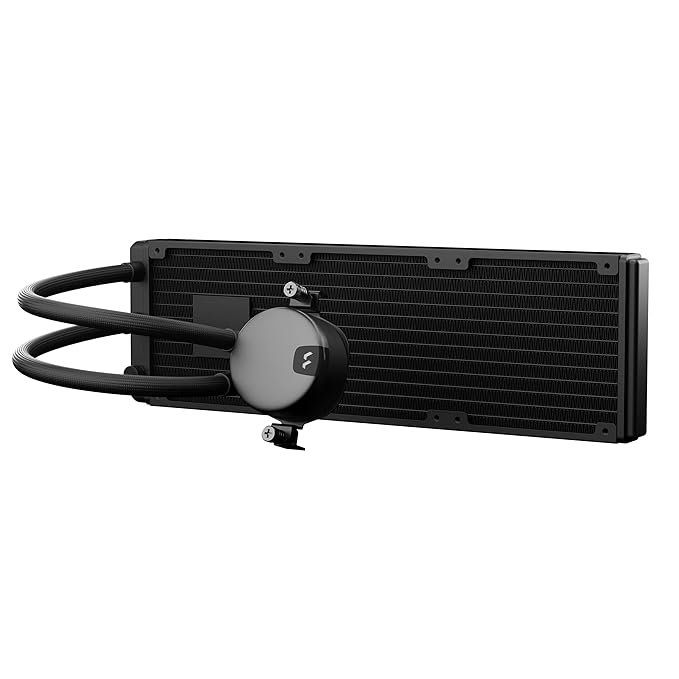

Fractal Design Lumen S36 RGB 360mm AIO CPU Liquid Cooler

General specifications

• Sockets supported (Intel) :- LGA 1700*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066
• Sockets supported (AMD) :- AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2
• Cold plate material

Copper

• Thermal paste

Pre-applied

• Tube length

400mm

• Tube material

Low-permeability rubber with braided nylon sleeve

• Fittings, block side

Articulating 90-degree Elbow

• Fittings, radiator side

Barbed fitting

• Block height

43mm

• Block measurements (with fittings)

79 x 67 mm

• Block diameter (main block body)

67 mm

Fan specifications

• Fan type

Aspect 12 PWM

• Rotational speed

500–2000 RPM

• Fan bearing

Rifle bearings

• Fan PWM control

Yes

• Fan acoustical noise

<10–33.2 dBA

• Fan maximum air flow

13-56 CFM

• Fan maximum static pressure

0.230–2.34 mm H2O

• Fan input voltage

12V

• Fan maximum input current

0.37A

• Fan MTTF

90,000 hours

Pump specifications

• Rotational speed

4000 ± 10% RPM

• Bearing type

Ceramic

• PWM control

No

• Acoustical noise (full speed)

22 dBA

• Maximum pressure

1.8 mm H2O/ 17.6 kPa / 2.5 PSI

• Input voltage

12V DC

• Input current (without fans)

0.34 A

• MTTF

50 000 hours

Radiator specifications

• Radiator dimensions

392 x 120 x 27 mm

• Radiator housing material

Aluminum

• Radiator fin material

Aluminum
