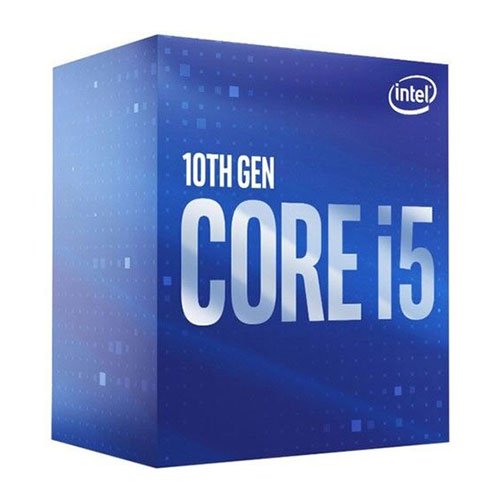

Intel Core I5-10400 6 Cores Turbo 4.3 GHz 12M Cache Processor

The Core i5-10400 2.9 GHz Six-Core LGA 1200 Processor from Intel has a base clock speed of 2.9 GHz and comes with features such as Intel Optane Memory support, Intel Boot Guard, Intel VT-d virtualization technology for directed I/O, and Intel Hyper-Threading technology. With Intel Turbo Boost 2.0, the maximum turbo frequency this processor can achieve is 4.3 GHz. Additionally, this processor features 6 cores with 12 threads in an LGA 1200 socket, has 12MB of cache memory, and 16 PCIe 3.0 lanes. Having 6 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 12 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core. This processor also supports 128GB of dual-channel 2666 MHz DDR4 RAM and utilizes 10th-generation technology.

General
CPU Model Intel Core i5-10400
CPU Socket LGA 1200
Manufacturing Process 14 nm
Maximum CPU Configuration 1S
Maximum Number of PCIe Lanes 16 (Revision 3.0)
Unlocked No
Performance
Number of Cores 6
Number of Threads 12
Base Clock Speed 2.9 GHz
Maximum Boost Speed 4.3 GHz
L3 Cache 12 MB
Memory Support
Maximum Capacity 128 GB
Memory Support DDR4 2666 MHz
ECC Memory No
Channel Architecture Dual Channel
Maximum Memory Bandwidth 41.6 GB/s
Power
Thermal Design Power (TDP) 65 W
Included Thermal Solution PCG 2015C
Maximum Temperature 212°F / 100°C
Thermal Monitoring Technologies Yes
Technology
AES Support Yes
Extension AVX 2.0, SSE 4.1/4.2
Instruction Set 64-Bit
Virtualization Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
Integrated Graphics
Graphics Chipset Intel UHD Graphics 630
Maximum Resolution Support 4096 x 2304 at 60 Hz
Supported APIs DirectX: 12
OpenGL: 4.5
Number of Displays 3
Maximum Shared Video Memory 64 GB
Output Support eDP, DisplayPort, HDMI
Base Clock Speed 350 MHz
Maximum Boost Speed 1.1 GHz
Intel
DMI DMI3 (8 GT/s)
Optane Memory Support Yes
vPro Support No
Performance Technologies Hyper-Threading, SpeedStep, Turbo Boost 2.0
Security Technologies Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, OS Guard, Secure Key, Software Guard Extensions
Video Technologies Clear Video, Clear Video HD, InTru 3D, Quick Sync Video
Packaging Info
Package Weight 0.58 lb
Box Dimensions (LxWxH) 4.7 x 4.3 x 2.8"
